Shower Layouts — Neo-Angle
Neo-Angle Frameless Shower — Centered Door
A centered hinged door at the apex with two angled side panels — ideal for corner installations, fabricated in custom angles to fit your bathroom.

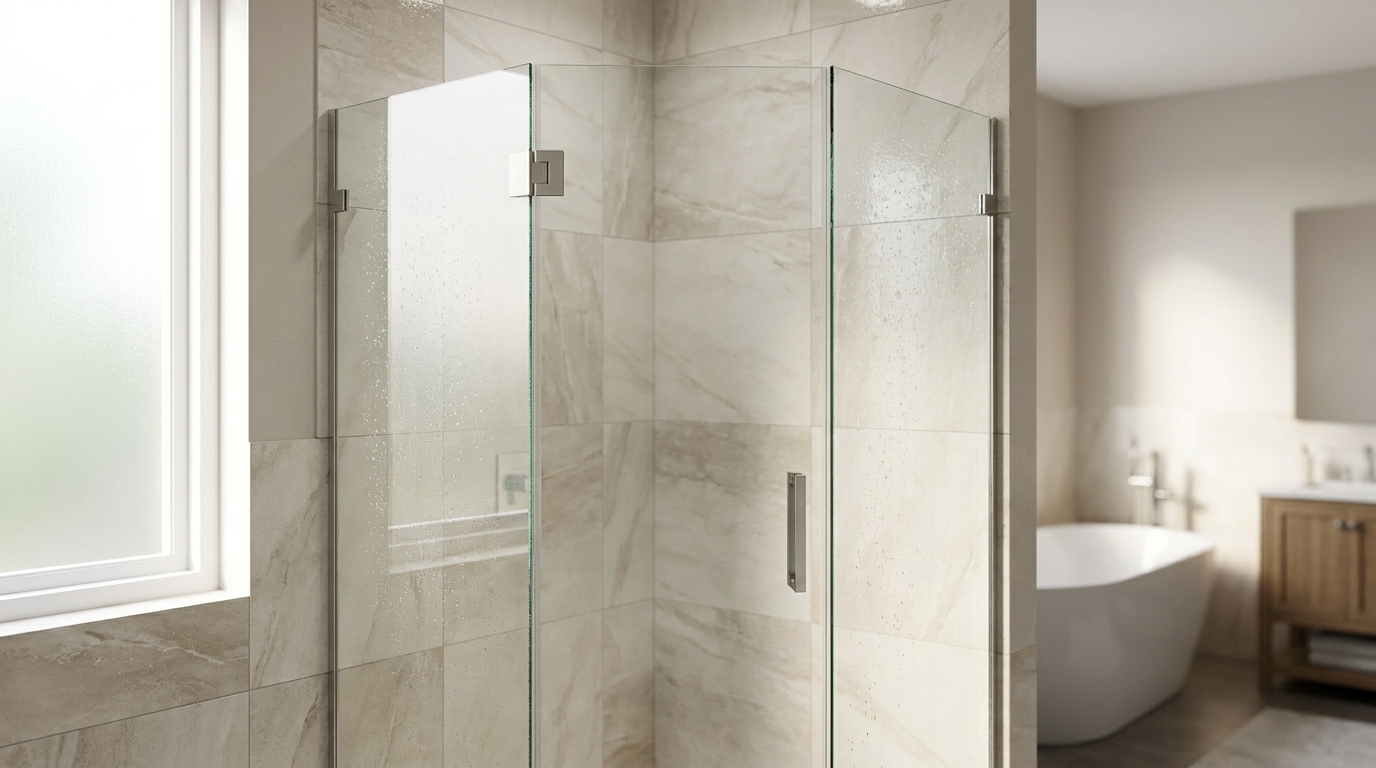

A modern neo-angle frameless shower with a centered glass door and two angled side panels. This layout is ideal for corner installations and can be fabricated with custom angles—not limited to standard 135° designs, allowing it to adapt to unique bathroom layouts.
Depending on the opening size and configuration, a support header may be required to provide additional stability for the door and maintain proper structural support.
System Features
-
Centered Hinged Door
Door sits at the apex of the neo-angle, with angled side panels splaying out to the walls.
-

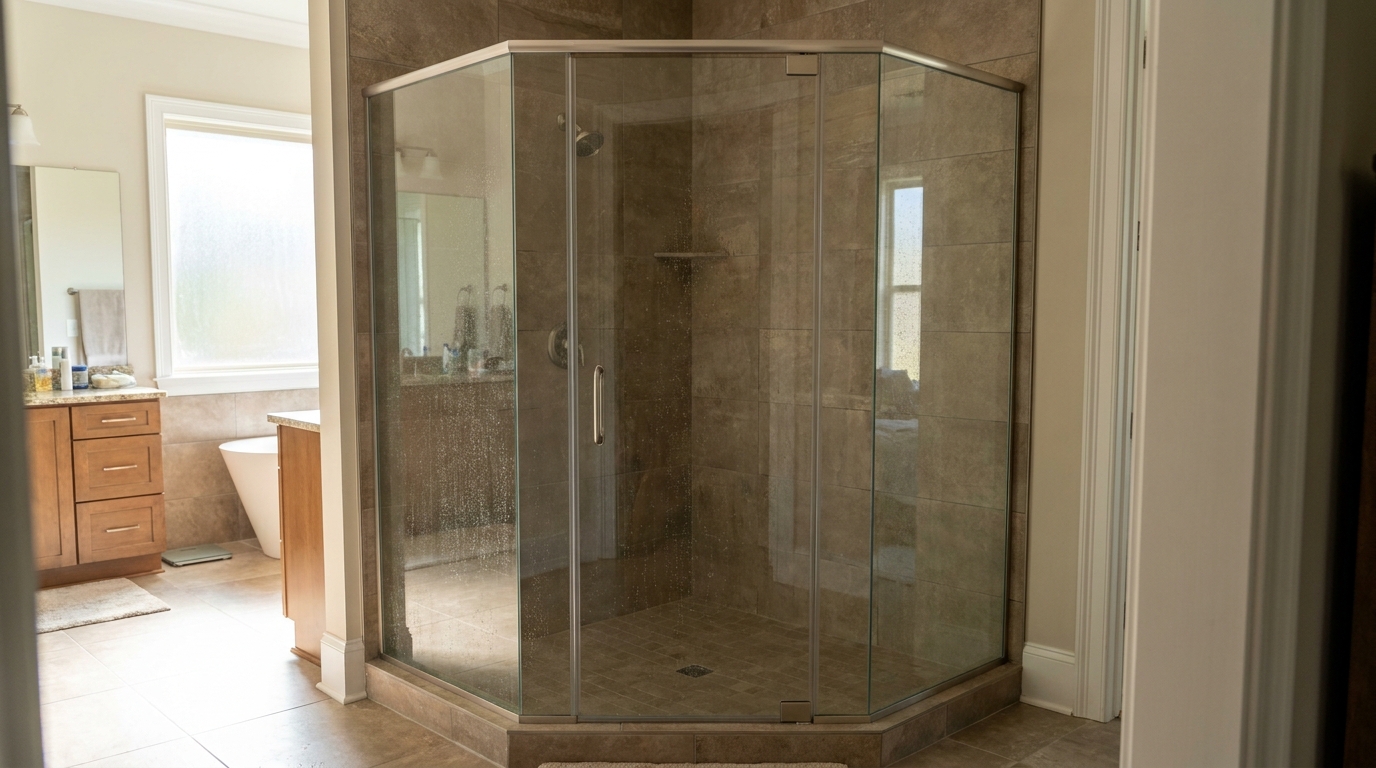

Custom Angles
Not limited to the standard 135° configuration. We CAD the angle to whatever your corner needs, then cut.
-

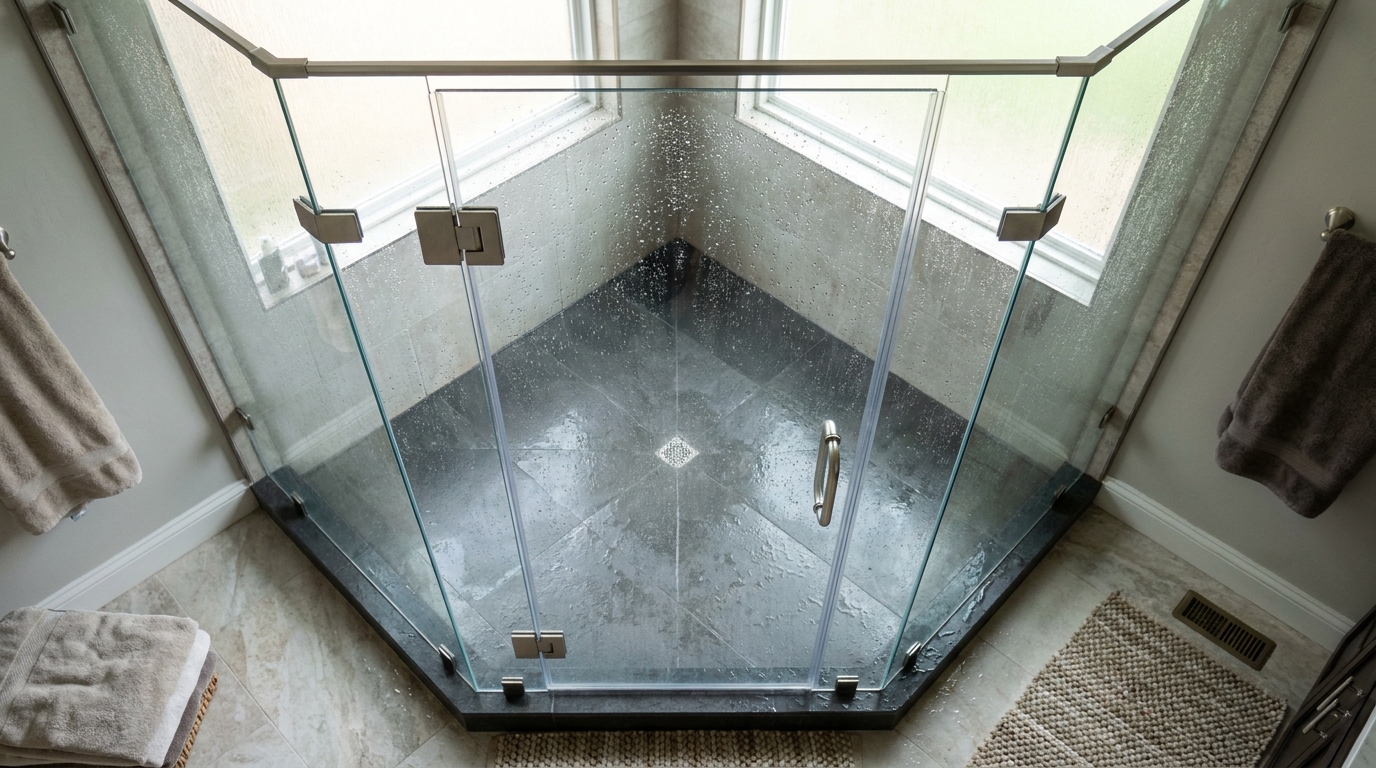

Support Header (when needed)

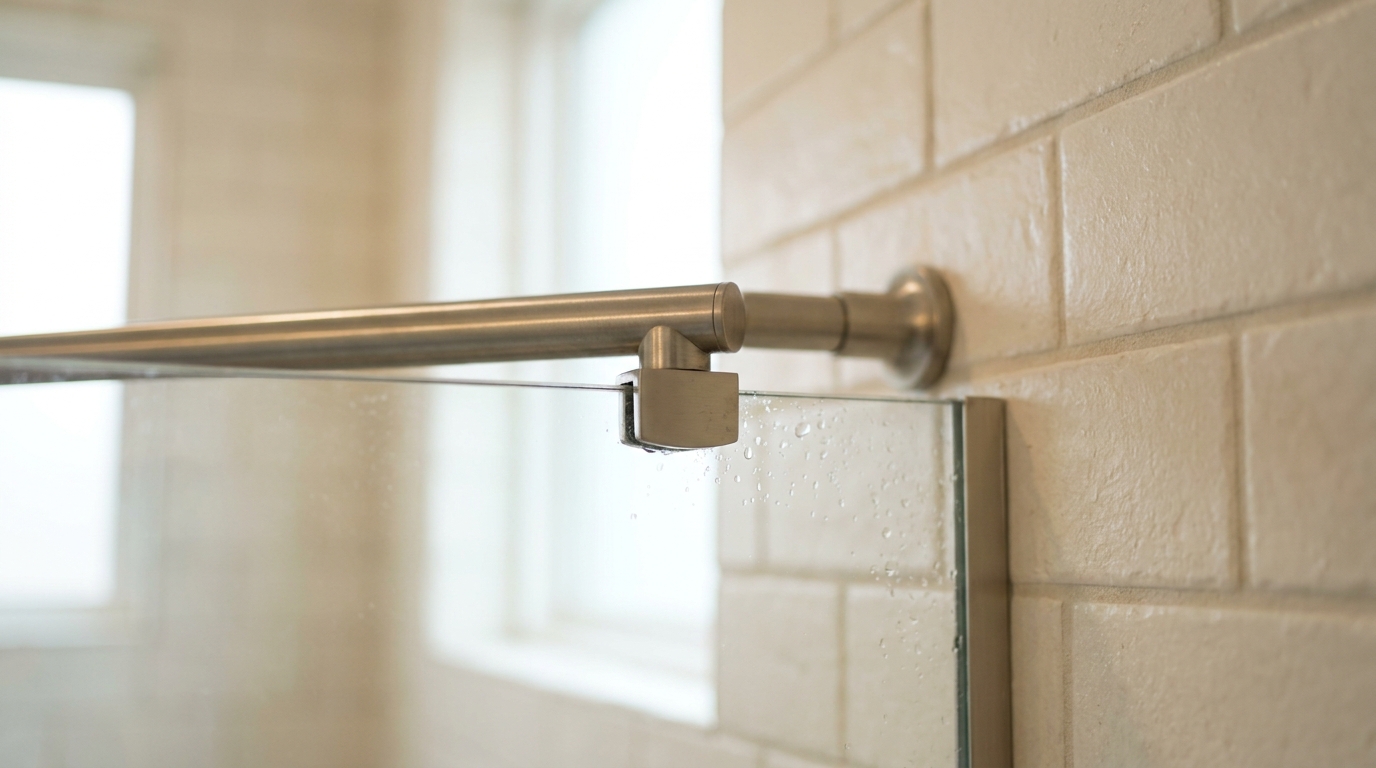

A horizontal support tube tying the two side panels across the top, added when opening size requires extra rigidity.
-
3/8" Tempered Glass
Standard frameless thickness across the door and both side panels.
-
Hardware Finishes
Polished chrome, brushed nickel, matte black, brushed brass, brushed gold — matched to your fixtures.
-
Compact Footprint
Works in tight corner installations where a square 90° enclosure would be too aggressive.
Specifications
- Glass Thickness
- 3/8" (standard); 1/2" available on request.
- Configuration
- Centered hinged door at the apex with two angled side panels.
- Angle
- Standard 135°; custom angles (~120° or as required) fabricated per quote.
- Support Header
- Added when opening size, glass weight, or panel geometry requires additional top stability.
- Glass Options
- Clear, low-iron (Starphire), rain, satin/frosted, gray-tint, bronze-tint — with optional Shower Guard surface protection.
- Lead Time
- Typical 2–3 weeks from final measure to install.
Best Applications
Corner Installations
When a square 90° corner shower would crowd the room and a softer angled approach reads better.
Non-Standard Corner Geometry
Walls that don't square up cleanly — custom angle fabrication wraps whatever the framing gives us.

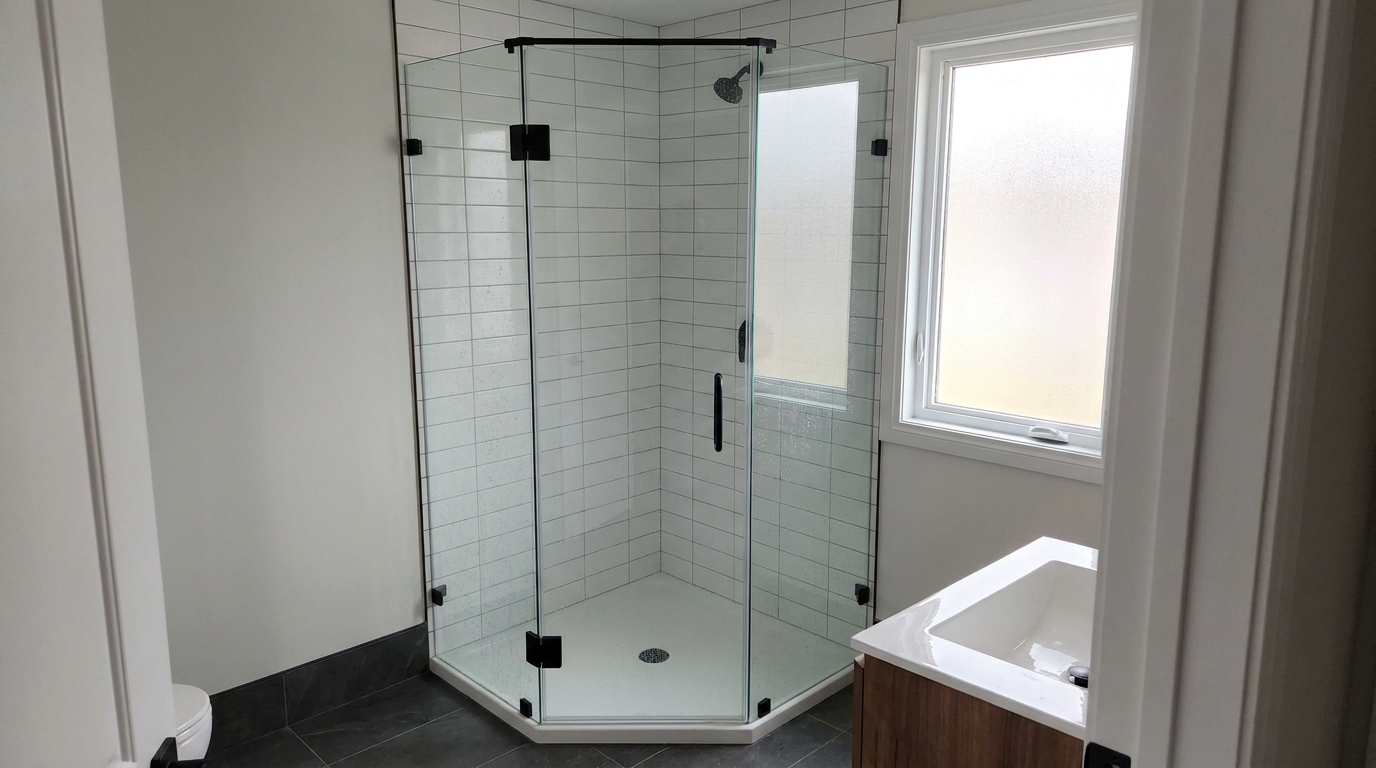

Compact Powder & Guest Baths
Tight footprint installations where every inch of floor matters.
Recent Installs
Recent Neo-Angle Centered-Door installs from across the Charlotte and Matthews area.
Manufacturer Credentials
Authorized C.R. Laurence (CRL) Hardware Supplier
Genuine CRL hinges, tracks, and finishes backed by manufacturer warranty.
ShowerGuard Registered Dealer (Guardian Glass)
Optional ShowerGuard surface protection on every glass spec we quote.
Talk to S & S About This Layout
Prefer to just send us a sketch or a photo? Skip the configurator and tell us in your own words.
Request a Quote for Neo-Angle Frameless – Centered Door
