Shower Layouts — Sliding

Cambridge Double Sliding Shower

Frameless Bypass Sliding Door System — two glass panels sliding past each other for maximum entry space.

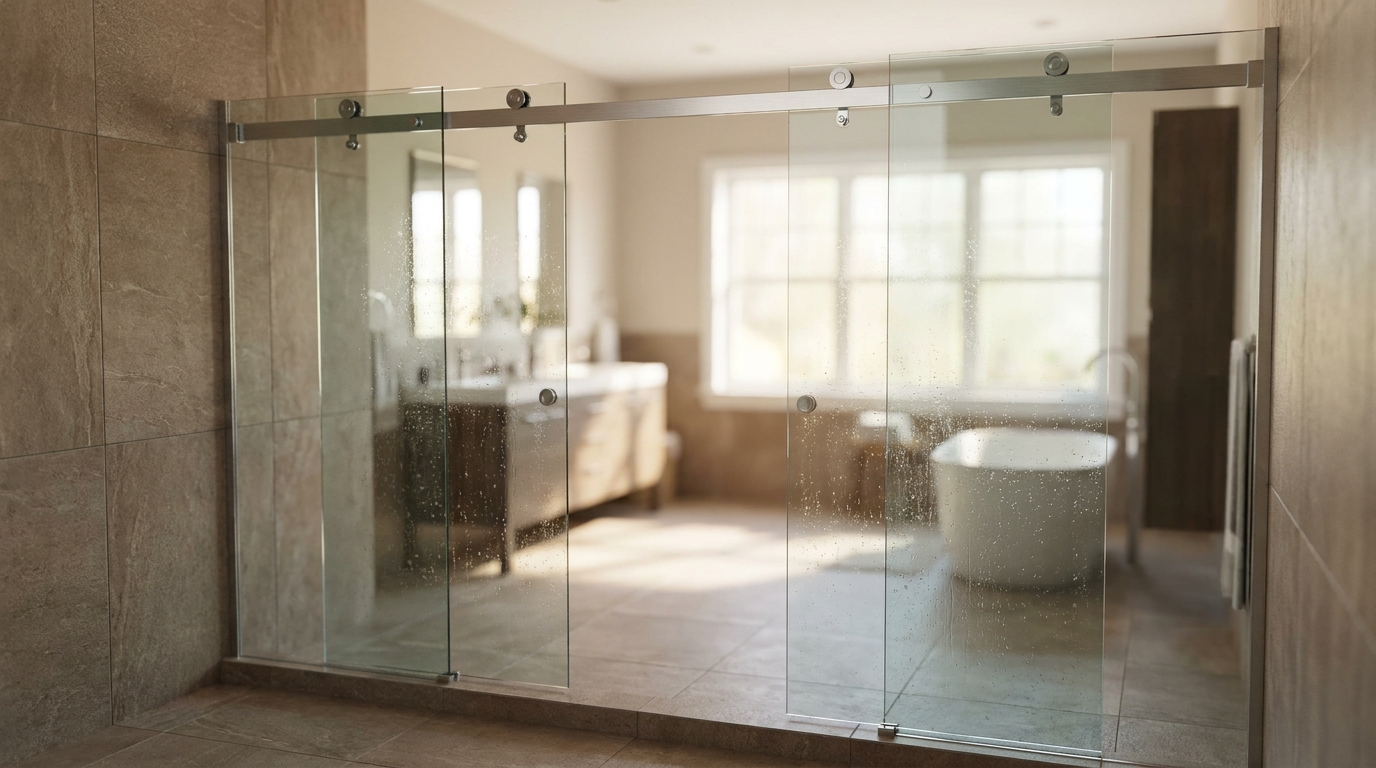

CRL Cambridge frameless dual-bypass sliding shower door in a Charlotte master bath

Build Your Quote

Configure This Layout

Pick the glass and finish you have in mind. We will price the build from your selections — no commitment, and you can change anything before signing off on the final quote.

Glass Thickness
Glass Type
ShowerGuard — Guardian Glass permanent clear coating

Optional factory coating that resists water spots, soap scum, and hard-water staining on every glass spec. Available on ALL glass we quote.

Hardware Finish

20 CRL Shower Hardware finishes (Vienna & Cologne lines). Swatches indicate finish family — final hardware samples are reviewed at quote stage.

Note: Unlacquered Brass is a "living finish" — it patinas naturally over time.

Approximate Size

A rough opening size helps us scope the quote. We will measure exactly on-site before fabrication.

You’re asking us to price:

No prices online — every S & S shower is custom quoted. Next step adds your contact info; Dario follows up within one business day.

The Cambridge double sliding shower features two frameless glass panels that slide smoothly past each other on a top-mounted roller system. This bypass design is ideal for niche showers, corner layouts, and bathtub installations, offering easy access without requiring swing clearance.

Built with durable stainless steel hardware and designed for modern squared aesthetics, the Cambridge system provides a clean frameless look while maximizing entry space.

Typical Size Range: Custom fabricated for openings approximately 40″–70″ wide, with heights typically between 70″–80″, depending on configuration and glass thickness.

System Features

  • Dual-Bypass Sliding

    Two glass panels slide past each other on a top-mounted track — either panel can be opened.

  • Frameless Glass

    Clean frameless aesthetic across both sliding panels.

  • Top-Mounted Roller System

    Stainless steel rollers engineered for smooth, quiet bypass operation.

  • Squared Modern Profile

    Contemporary squared hardware design throughout the system.

  • No Swing Clearance Required

    Ideal for tight bathrooms, alcove tubs, and niche showers where a swinging door won't work.

  • Custom Width

    Fabricated to your exact opening between 40″ and 70″.

Specifications

Design Style
Squared modern profile
Opening Style
Sliding (Bypass)
Glass Thickness
5/16″ – 3/8″ (8–10 mm) tempered glass
Hardware Material
Stainless steel
Finish
Brushed stainless steel
Maximum Door Height
80″
Maximum Door Width
37″ per panel
Maximum Door Weight
84 lbs
Maximum Opening Width
73″
Roller Location
Top mounted
Series
Cambridge

Best Applications

Niche Showers

Built-in niche showers where bypass sliding avoids swing clearance issues.

Corner Layouts

Corner installations where a single slider's overlap geometry won't reach the full opening.

Bathtub Enclosures

Shower-over-tub installations on wider tubs (up to ~73″ opening).

Recent Installs

Recent CRL Cambridge double-slider installs from across the Charlotte and Matthews area.

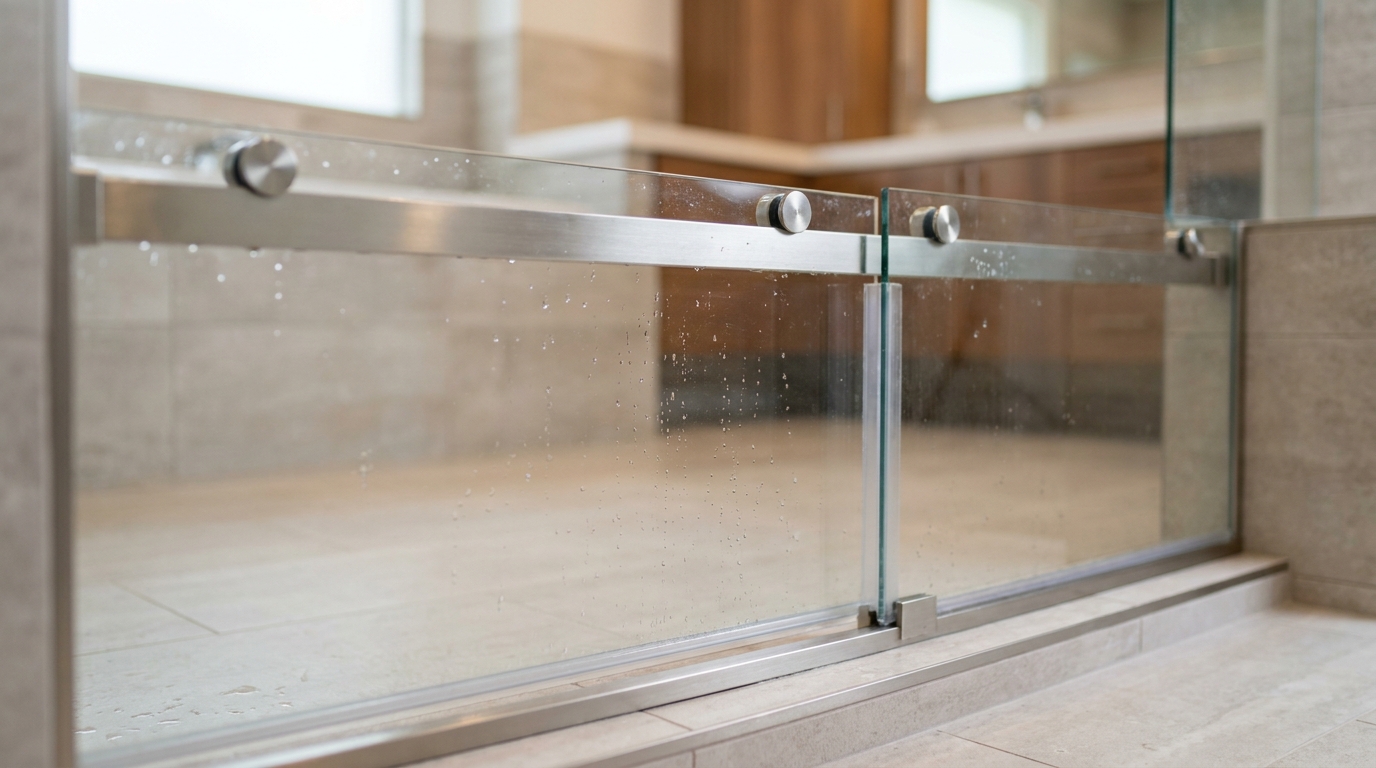

Detail of squared profile top track and bottom guide rail on Cambridge slider

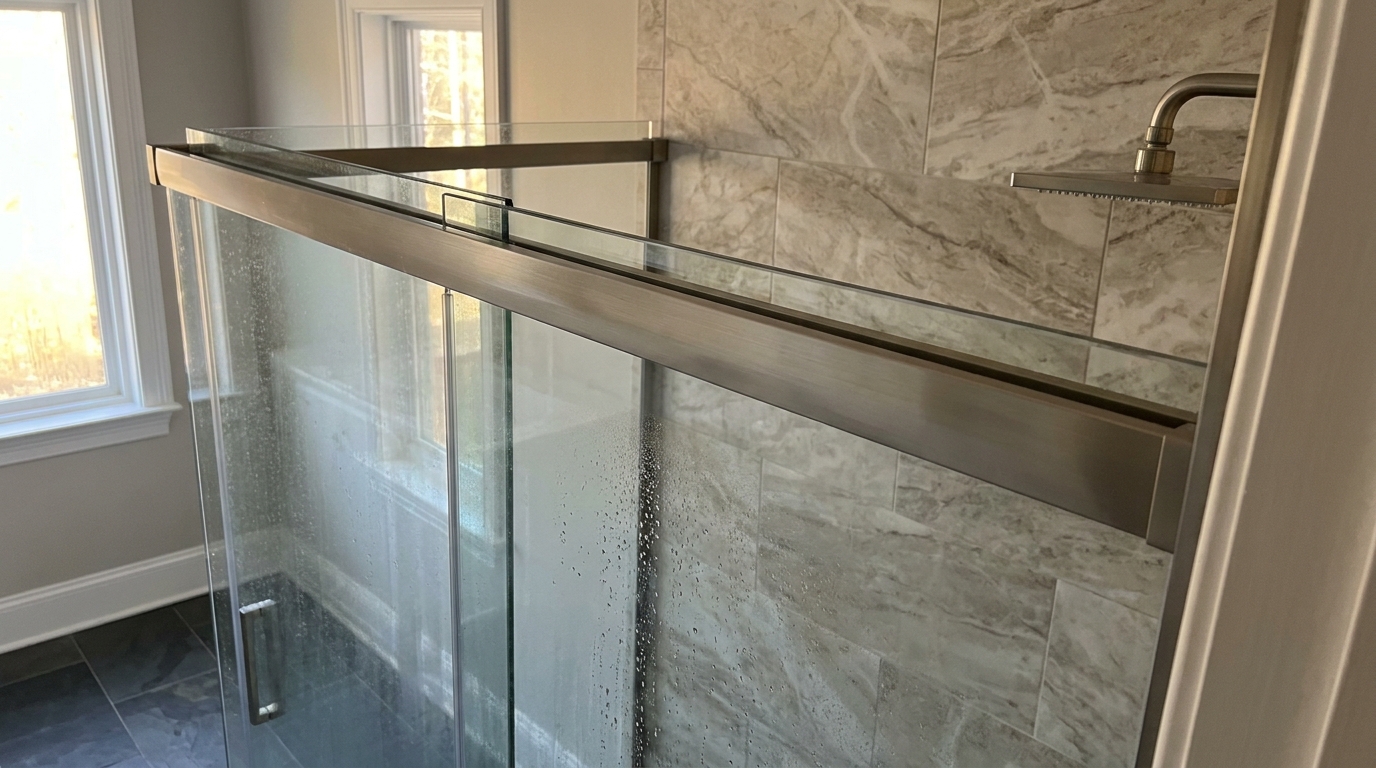

Bypass detail of CRL Cambridge dual-slider with one panel slid open

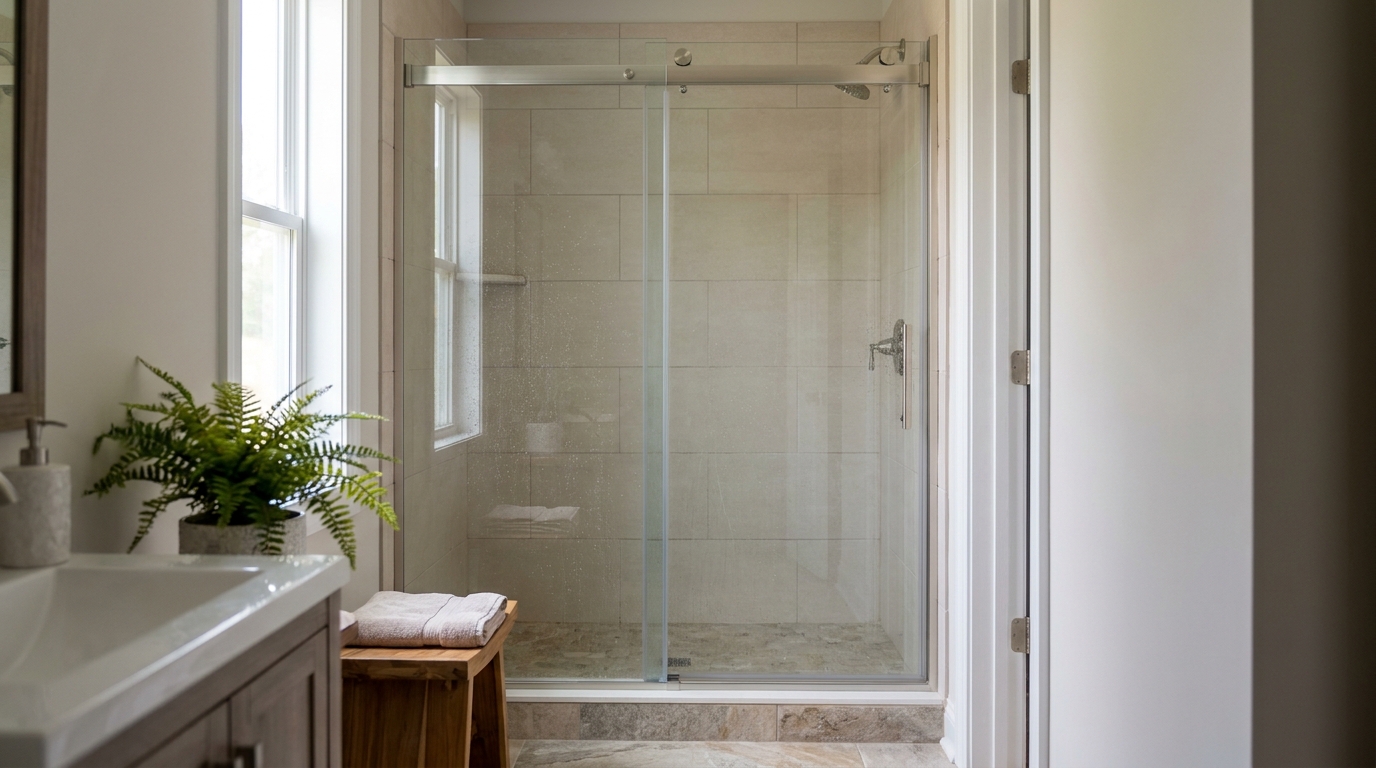

Tight 40-46 inch CRL Cambridge slider in a smaller secondary bath

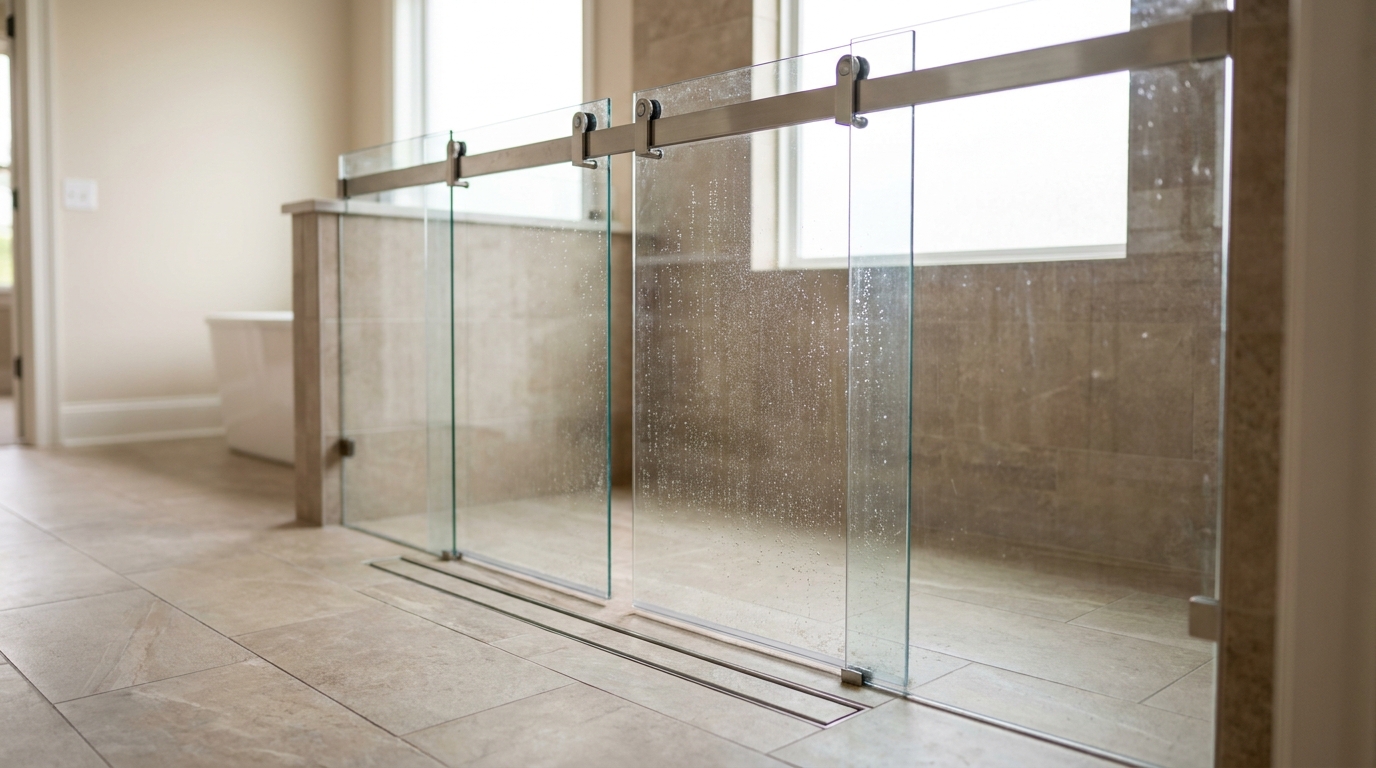

Wider 70-inch CRL Cambridge slider with linear drain and large-format porcelain

Manufacturer Credentials

Authorized C.R. Laurence (CRL) Hardware Supplier

Genuine CRL hinges, tracks, and finishes backed by manufacturer warranty.

ShowerGuard Registered Dealer — Guardian Glass

ShowerGuard Registered Dealer (Guardian Glass)

Optional ShowerGuard surface protection on every glass spec we quote.

Talk to S & S About This Layout

Prefer to just send us a sketch or a photo? Skip the configurator and tell us in your own words.

Request a Quote for Cambridge Double Sliding
