Shower Layouts — Walk-In

Frameless Door with Glass-to-Glass Hinges

A sleek frameless shower design where the door is hinged directly from a fixed glass panel using glass-to-glass hinges.

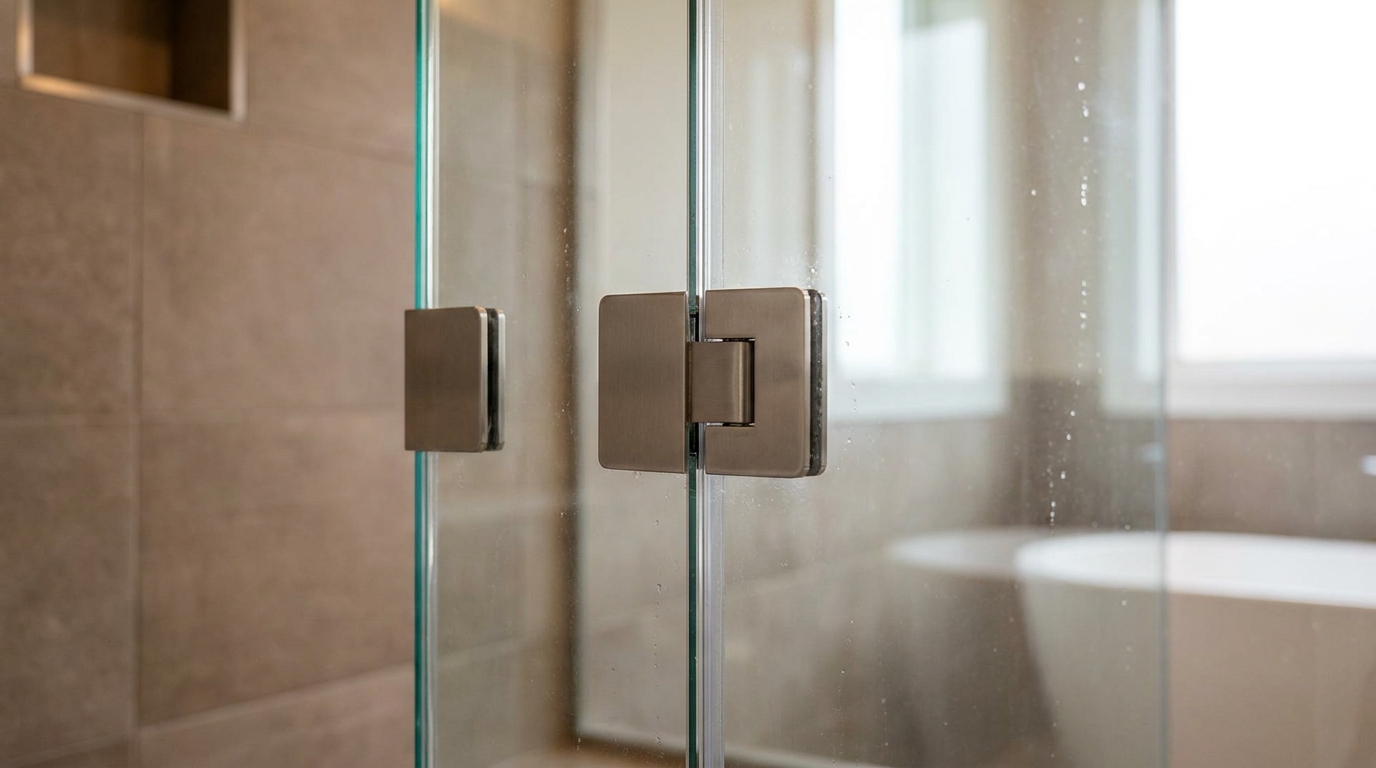

Frameless shower door with glass-to-glass hinges in a Charlotte master bath

Build Your Quote

Configure This Layout

Pick the glass and finish you have in mind. We will price the build from your selections — no commitment, and you can change anything before signing off on the final quote.

Glass Thickness
Glass Type
ShowerGuard — Guardian Glass permanent clear coating

Optional factory coating that resists water spots, soap scum, and hard-water staining on every glass spec. Available on ALL glass we quote.

Hardware Finish

20 CRL Shower Hardware finishes (Vienna & Cologne lines). Swatches indicate finish family — final hardware samples are reviewed at quote stage.

Note: Unlacquered Brass is a "living finish" — it patinas naturally over time.

Approximate Size

A rough opening size helps us scope the quote. We will measure exactly on-site before fabrication.

You’re asking us to price:

No prices online — every S & S shower is custom quoted. Next step adds your contact info; Dario follows up within one business day.

A sleek frameless shower design where the door is hinged directly from a fixed glass panel using glass-to-glass hinges. This layout eliminates the need for wall-mounted hinges, creating a clean, modern appearance while maintaining strong support and smooth door operation.

System Features

  • Glass-to-Glass Hinges

    Heavy-duty hinges that mount through the fixed panel rather than into the wall — no studs or tile-blocking required at the hinge run.

  • 3/8" Tempered Glass

    Standard frameless thickness. Door and fixed panel sized together so the hinge geometry stays clean across the seam.

  • Open, Wall-Free Look

    Ideal when the fixed panel runs perpendicular off a half-wall or low return rather than into a full tile wall.

  • Hardware Finishes

    Brushed nickel, matte black, polished chrome, brushed brass — matched to your fixtures.

  • Custom Door Width

    Door panel sized to the opening, with the fixed panel running the balance of the enclosure.

  • Smooth, Quiet Swing

    Glass-to-glass hinges deliver the same heavy-duty action as wall-mount hinges with a cleaner visual.

Specifications

Glass Thickness
3/8" (standard); 1/2" available on request.
Hinge Type
Glass-to-glass mount; door panel hinged into the edge of the fixed panel.
Typical Door Width
22"–36" finished door panel.
Typical Height
72"–84" (height to your spec).
Glass Options
Clear, low-iron (Starphire), rain, satin/frosted, gray-tint, bronze-tint — with optional Shower Guard surface protection.
Lead Time
Typical 2–3 weeks from final measure to install.

Best Applications

Half-Wall Showers

The fixed panel runs off a low pony wall or half-wall — the door hinges into the panel, not the wall.

Open Master Baths

When the shower opening sits in the middle of the room rather than tucked into an alcove, glass-to-glass removes the visual weight of wall hinges.

Tile-Sensitive Walls

Useful when the adjacent wall is finished in a tile you don't want to drill a hinge plate into.

Recent Installs

Recent Glass-to-Glass Hinge installs from across the Charlotte and Matthews area.

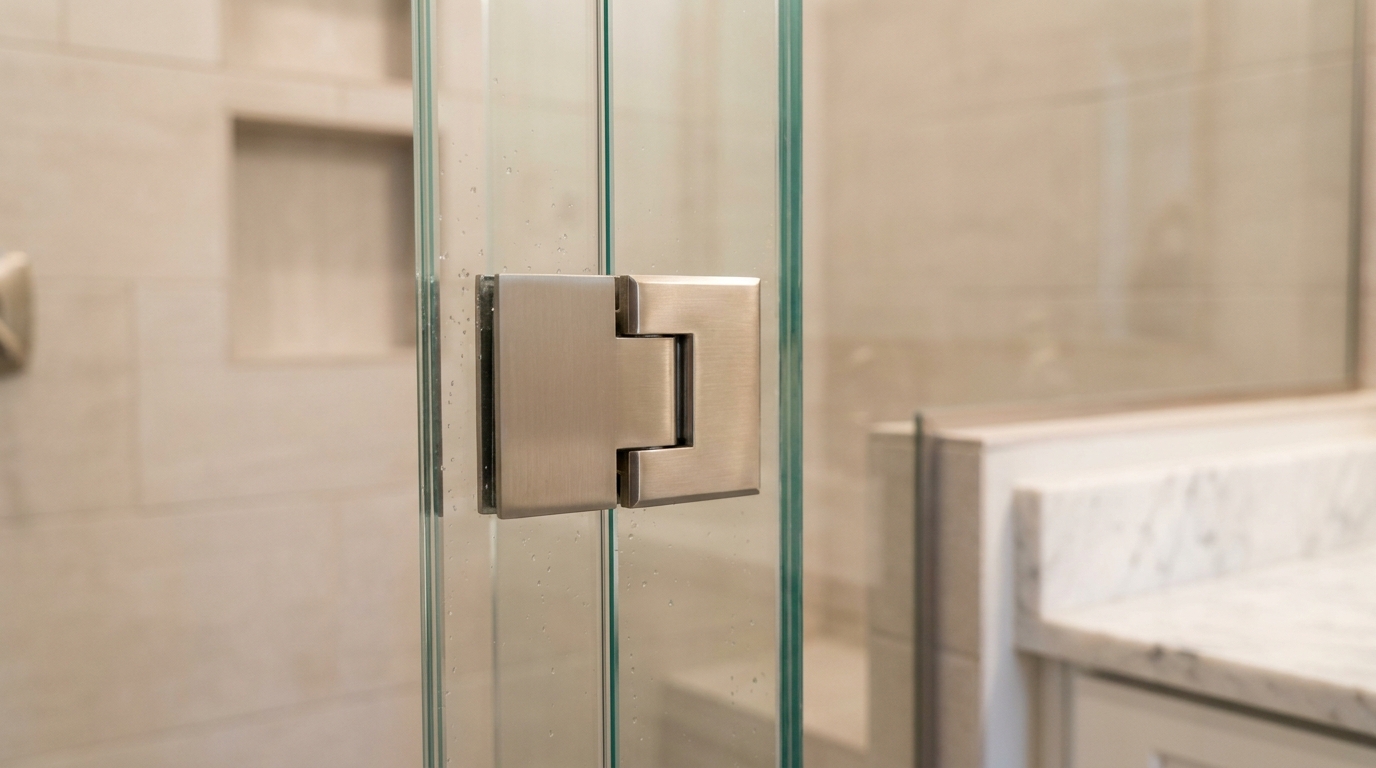

Glass-to-glass hinge detail on a frameless shower in Matthews NC

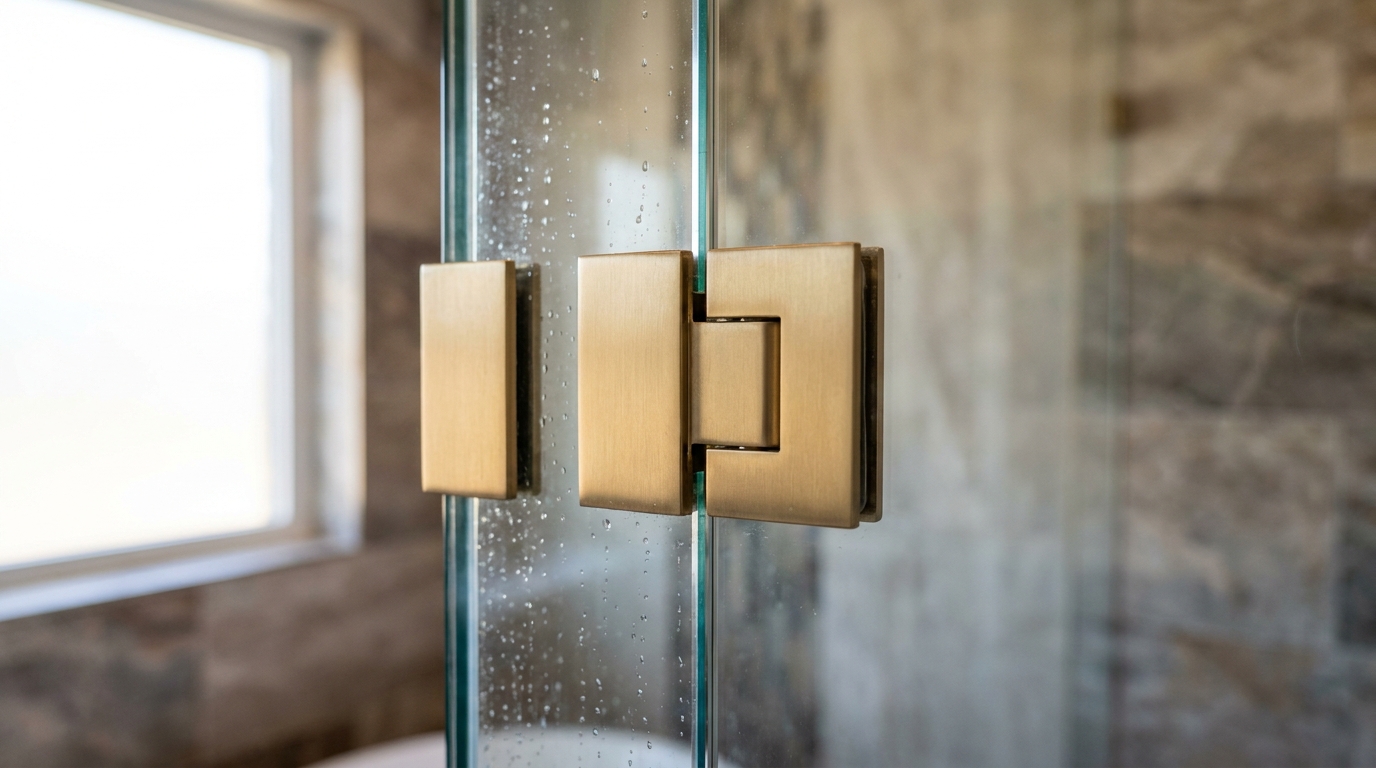

Brushed brass glass-to-glass hinge close-up

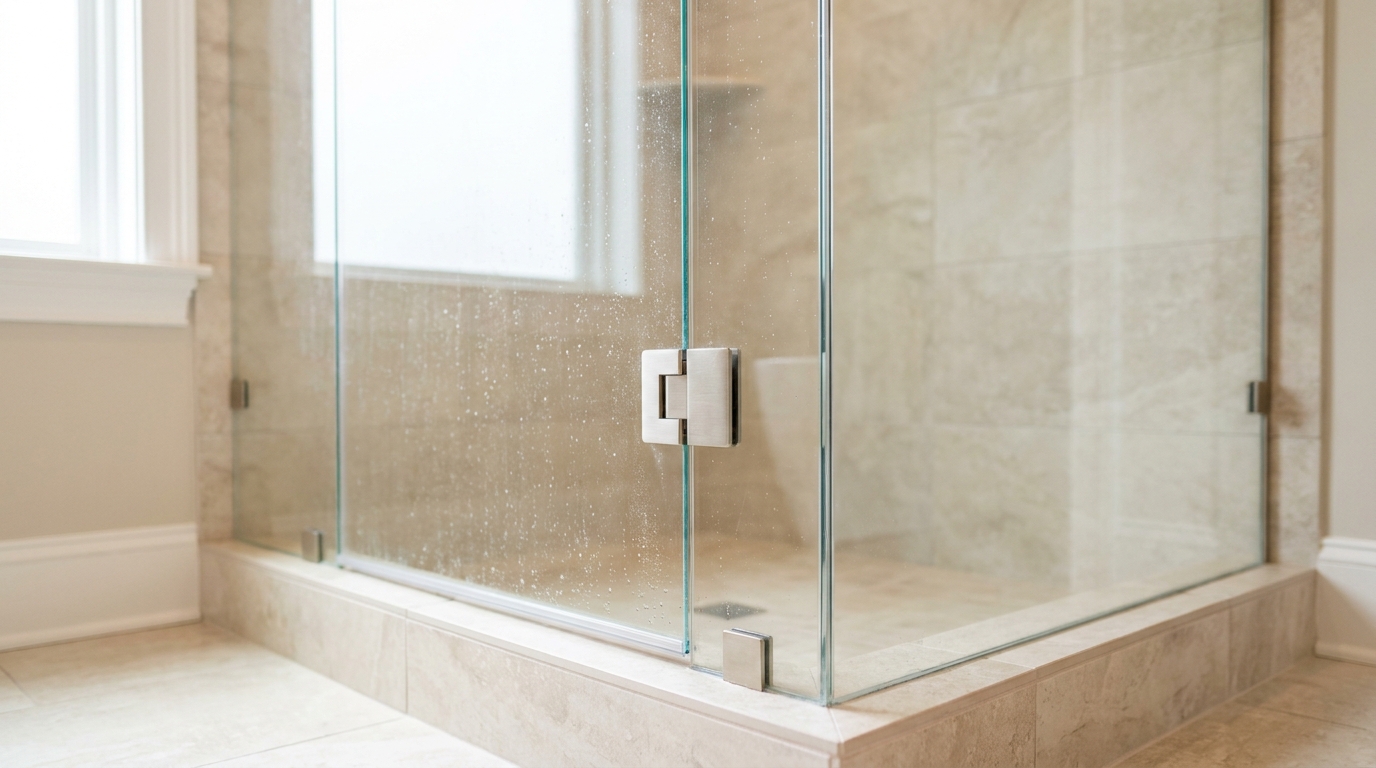

Frameless shower with door anchored to perpendicular fixed glass panel

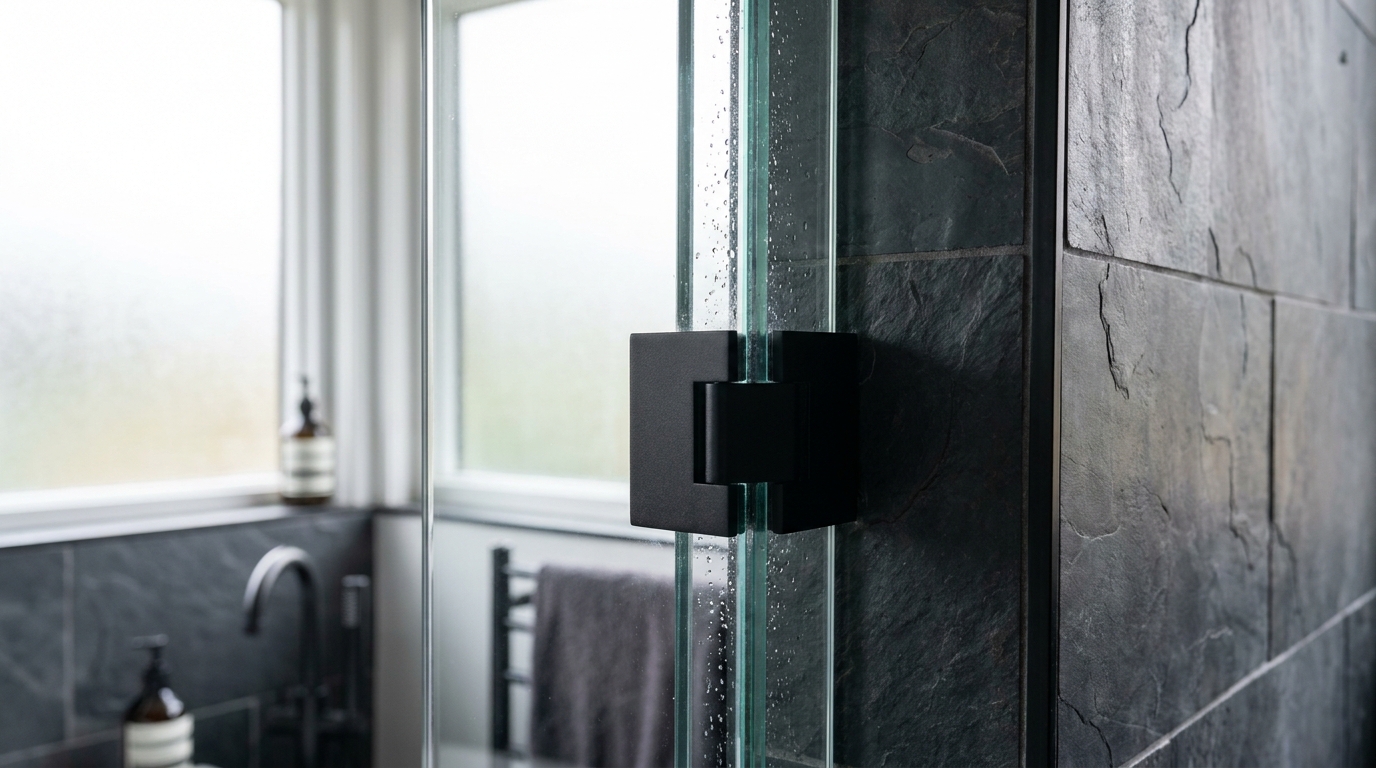

Matte black glass-to-glass hinges on a slate-tile bathroom shower

Manufacturer Credentials

Authorized C.R. Laurence (CRL) Hardware Supplier

Genuine CRL hinges, tracks, and finishes backed by manufacturer warranty.

ShowerGuard Registered Dealer — Guardian Glass

ShowerGuard Registered Dealer (Guardian Glass)

Optional ShowerGuard surface protection on every glass spec we quote.
